M1 Service Instructions

M1: Bungee Replacement

  • May 22, 2017 // Modified 7 years ago

Step 1- Remove the handle from the handle rests and place the handle in the full forward position.

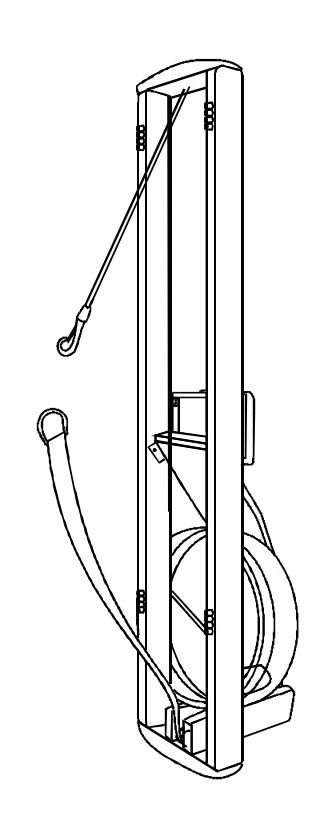

Step 2- Disconnect the bungee as shown.

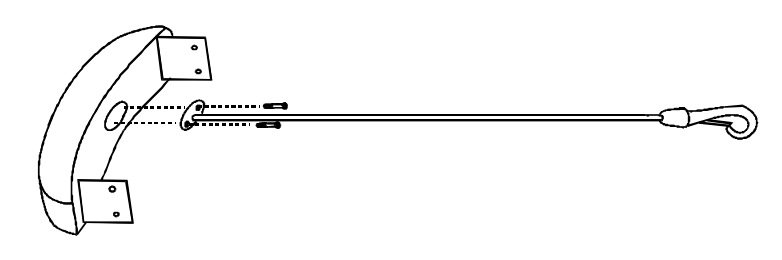

Step 3- Remove the bungee from the rear spacer and reattach the replacement bungee as shown.

Step 4- Connect the bungee to the recoil belt as shown.
