M1 Service Instructions

M1: Handle replacement (metal clutch)

For Video Instructions, click here: Replacing the Handle Assembly (Metal/Velcro attachment)

Step 1. Remove the Handle from the handle rests and place the handle in the full forward position

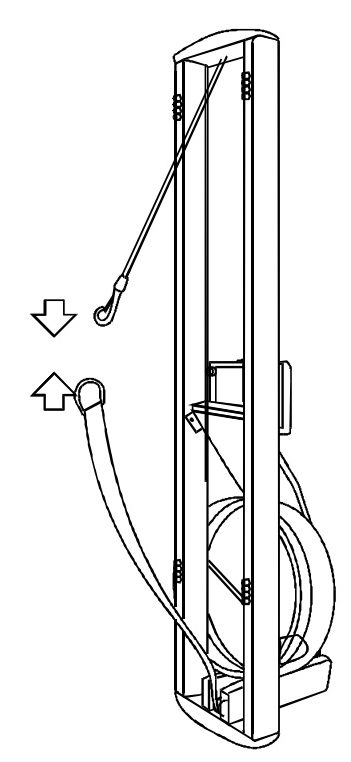

Step 2. Stand the WaterRower upright and disconnect the bungee from the recoil belt as shown.

Step 3. Lay the WaterRower down and slowly pull the handle so that the drive strap unwinds from the clutch housing. Do this gently as pulling too fast will cause the recoil belt to wind up too much. If you can hold the clutch.

Handle Replacement

Step 4. Take the new handle assembly and pass the Velcro end over the large pulley in the forward riser as shown. (The Velcro should face the large pulley as it passes between the wire riser form and the pulley).

Step 5. Pass the drive strap around the large pulley and underneath the top deck back towards the clutch housing. Pass the end of the drive strap inside (towards the center of the machine) the drive strap guide pulley (the upper of the two guide pulleys). Take the end of the drive strap and place the edge against the join in the mating Velcro on the clutch housing as shown.

Step 6. Check that the belt orientation is correct. Slowly rotate the clutch (in a clockwise direction, as viewed from above) to feed the drive strap onto the clutch housing as shown. Make sure that the drive strap feeds evenly onto the clutch. Wind the drive strap onto the clutch so that the handle reaches its full forward position, as shown.

Step 7. If your recoil belt is still attached to the recoil bush then go onto step 5. Otherwise it will be necessary to reconnect the recoil. If you feel unsure about the orientation of the recoil it may be best to go through this process anyhow.

Step 8. With the handle in the full forward position, it is important that the recoil belt wraps around the recoil bush between one and two turns. Once this is so pass the recoil belt inside (towards the center of the machine) the recoil belt guide pulley (the lower of the two guide pulleys) and over the two pulleys in the forward riser. Pass the belt underneath the machine towards the bungee as shown.

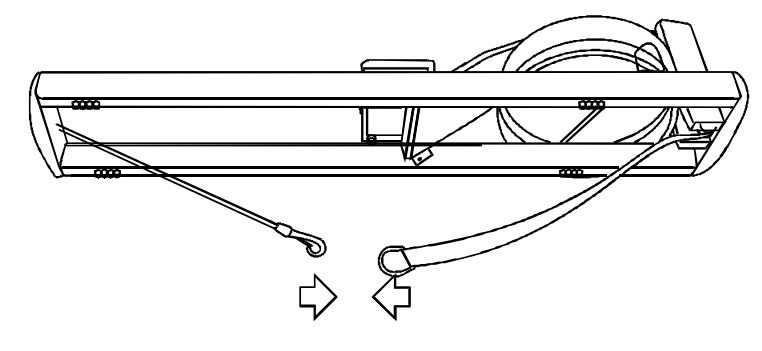

Step 9. Connect the recoil belt to the bungee as shown.

Note: If the recoil belt buckle and D-ring have been removed it will be necessary to refit them before Step 5 may be completed. Refer to the Recoil Buckle Replacement Instruction for details

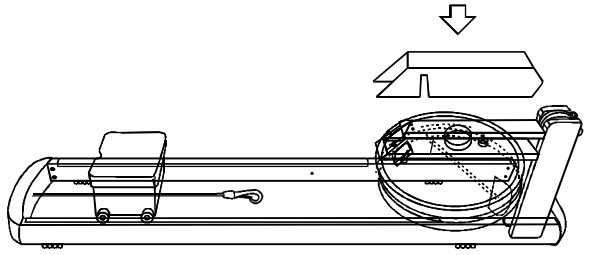

Step 10.  Replace the M1 Cover as shown.

Step 11. Swing the footboard forward so that the handle rest holes locate over the insert holes in the tank.

Step 12.  Replace the Handle Rests and Handle Rest Bolts as shown.
