Series 2 Service Instructions

Series 2: Footstrap Replacement (Bolt on)

  • Jun 12, 2017 // Modified 7 years ago

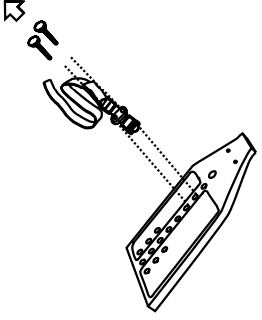

Step 1.  Remove the Footstrap bolts and Footstrap.

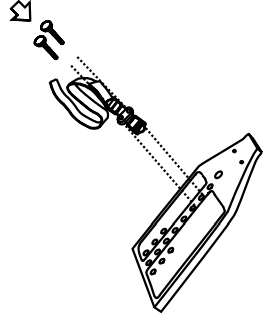

Step 2.  Replace the Footstrap bolts and Footstrap.
