Series 3 Service Instructions

Series 3: Dolley Wheel Replacement (UK)

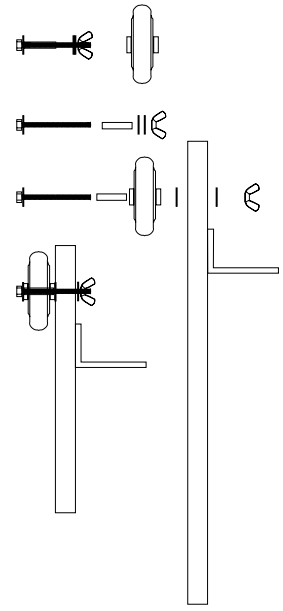

Step1- Assemble the dolley wheel to the rail in the sequence shown.
