Series 3 Service Instructions

Series 3: Rubber Feet Replacement

  • May 24, 2017 // Modified 8 years ago

Step 1- Locate the two sets of indentation guides on the bottom of the wooden rail.

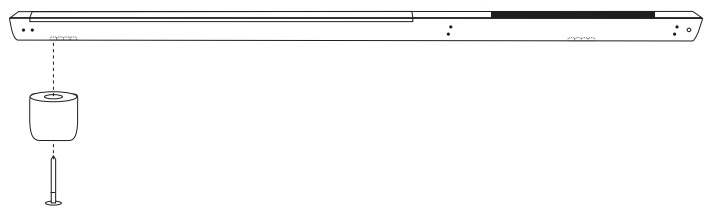

A:The rear rubber feet indentations are approximately 3 1/2” from the back of each rail.

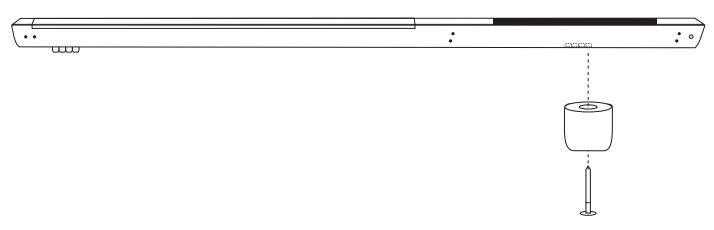

B:The front rubber feet indentations are approximately 13” from the front of each rail.



Step 2- Start at the rear of the rail and attach first of four rear rubber feet. Firmly place foot and wood screw into position and tighten with a Phillips head screwdriver. Tighten until foot is fully secure [can no longer rotate by hand].
Attach 2nd, 3rd, and 4th feet in a similar manner, while ensuring each one is flush with neighboring foot/feet.


Step 3- Continue to the front of the rail and attach first of four front rubber feet.

Firmly place foot and wood screw into position and tighten with a Phillips head screwdriver. Tighten until foot is fully secure [can no longer rotate by hand]. Attach 2nd, 3rd, and 4th feet in a similar manner, while ensuring each one is flush with neighboring foot/feet.

Step 4- Follow your assembly instructions to attach rail to rower.
