Series 3 Service Instructions

Series 3: Seat Replacement

  • May 24, 2017 // Modified 6 years ago

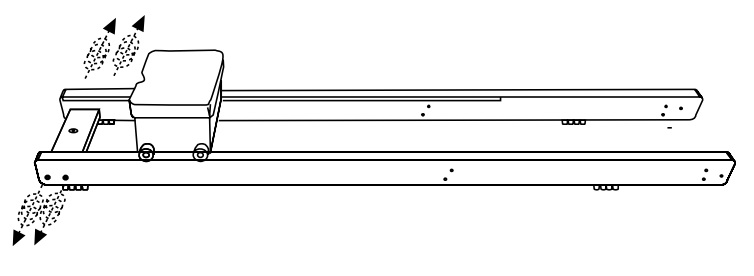

Step 1- Loosen the fasteners holding the Rear Spacer to the rails three or four turns each.

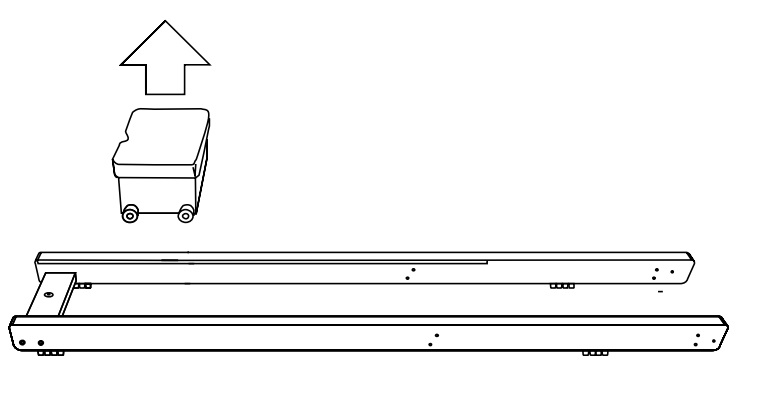

Step 2- Remove the seat.

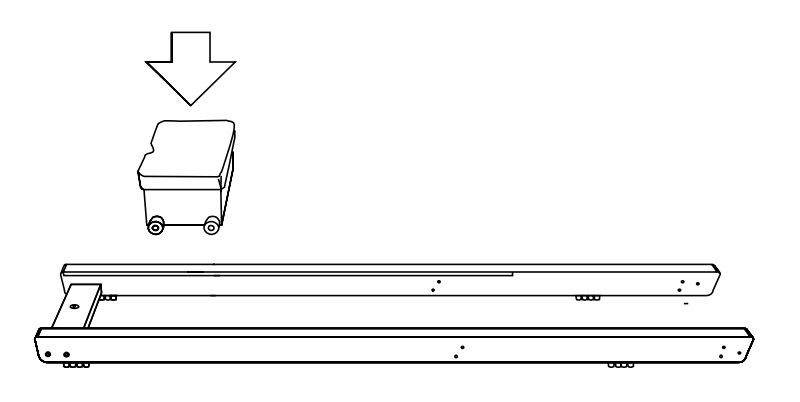

Step 3- Replace the seat.

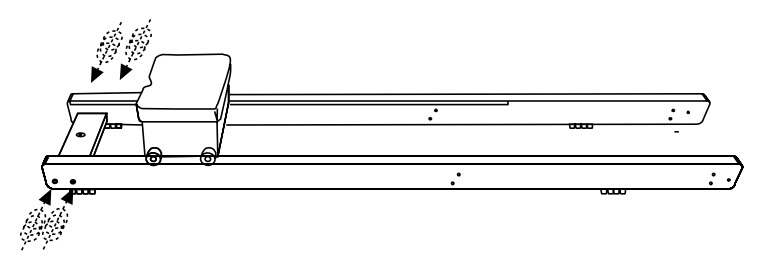

Step 4- Tighten the fasteners holding the Rear Spacer to the rails.
