Series 3 Service Instructions

Series 3: Single Bungee Replacement

  • Jun 08, 2017 // Modified 8 years ago

For Video Instructions, please see the following link:
Replacing the S4 Bungee Assembly

Step 1- Remove the Handle from the handle rests and place the handle in the full forward position.

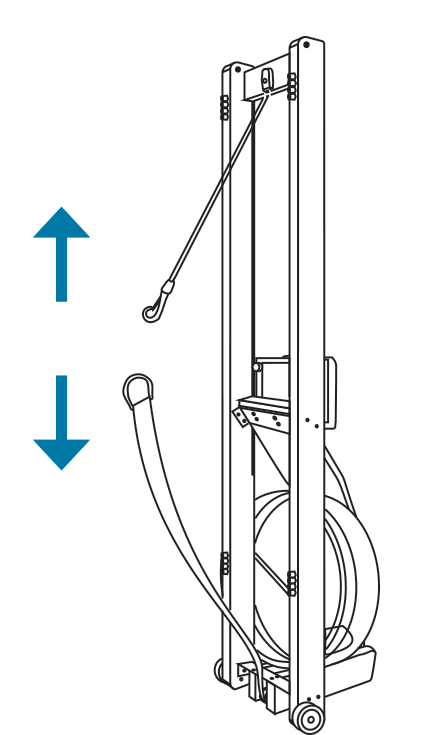

Step 2- Stand the WaterRower upright and disconnect the bungee from the Recoil Belt as shown.

Step 3- Remove the Bungee from the Rear Spacer and reattach the replacement bungee as shown.

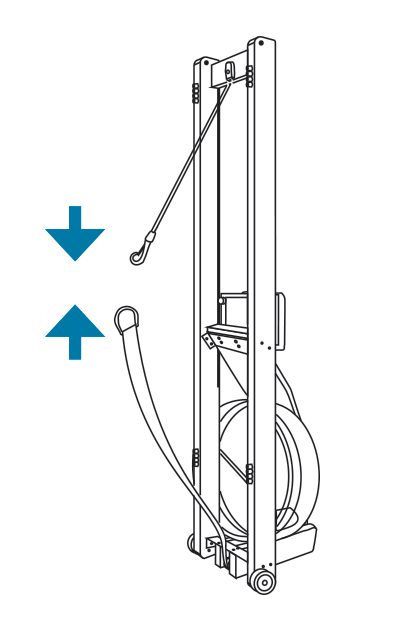

Step 4- Reconnect the Bungee to the Recoil Belt as shown.
