US Model A
The US operation manufactured two basic designs of the rowing machine, the WaterRower Series II Model A and the WaterRower Series II Model B.
The WaterRower Series II Model A was the first redesign of the popular Series I and may be identified by the following characteristics.
US Model B
The US operation manufactured two basic designs of the rowing machine, the WaterRower Series II Model A and the WaterRower Series II Model B.
The WaterRower Series II Model B was the model which sold widely through the Nordic Track organization and may be identified by the following characteristics:
UK
The UK operation manufactured two basic designs of the rowing machine, the WaterRower Series II Model A and the WaterRower Series II Model C, they can be identified by the following characteristics:
Wood Variations
US Model A
US Model B
UK

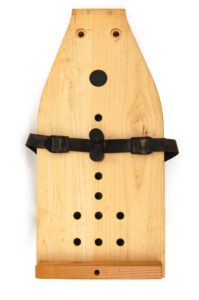

Footboard
US Model A
The Footboard was a single piece and both the heel rest and the 1″ foot strap were adjustable by a series of bolt holes in the footboard.
US Model B
The Footboard was a single piece and both the heel rest and the 1″ foot strap were adjustable by a series of bolt holes in the footboard.
UK
The Footboard was a single piece and both the heel rest and the 1″ foot strap were adjustable by a series of bolt holes in the footboard.
Handle
US Model A

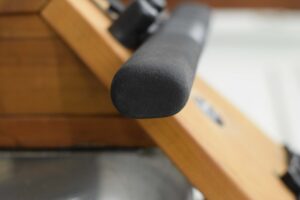

The 15″ handle had a new teardrop shape.
US Model B
The 15″ handle had a new teardrop shape.
UK
The 15″ handle had a new teardrop shape.
Tank
US Model A

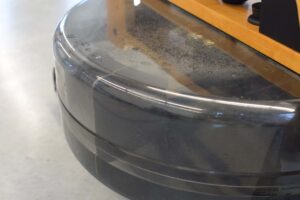

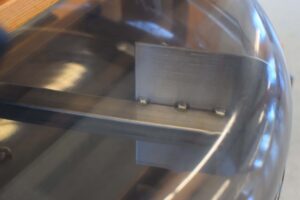

The tank is vaccum formed with a 1″ corner radius a fabricated stainless steel paddle.
US Model B
The tank is vaccum formed with a 1″ corner radius a fabricated stainless steel paddle.
UK
The tank is vaccum formed with a 2″ corner radius and a fabricated stainless steel paddle.
Dolly Wheels
US Model A

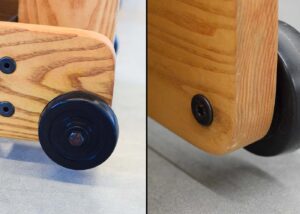

The dollywheels are 4″ with a JCM attachment to the rower.
US Model B
The dollywheels are 4″ with a JCM attachment to the rower.
UK

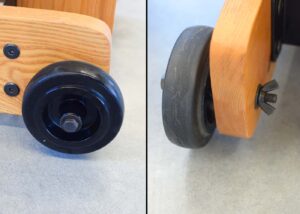

The dollywheels are 4″ with a fly wing nut attachment to the rower.

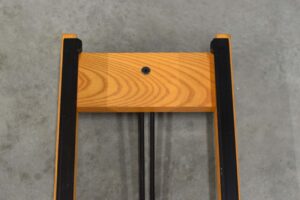

Rails
US Model A
The rails are 1.25″ x 4.5″ wood with a double bungee.
US Model B

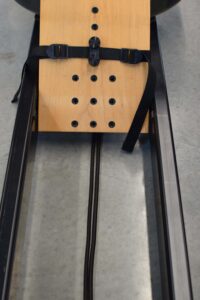

The rails are aluminum with a double bungee.
UK
The rails are 1.25″ x 4.5″ wood with a double bungee.
Monitor
US Model A

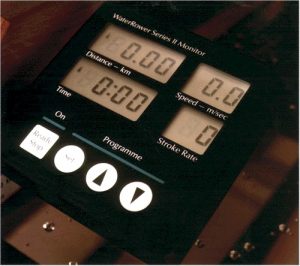

The monitor has a 4″ housing, uses a motorola chip and membrane switch buttons.
US Model B
The monitor has a 4″ housing, uses a motorola chip and membrane switch buttons.
UK

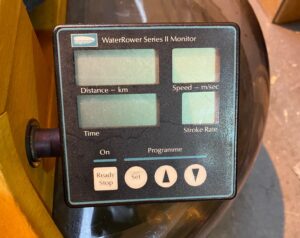

The monitor has a 4″ housing, uses a microchip IC with a Tacho motor, belt sensor, and membrane switch buttons.
Key Brackets
US Model A

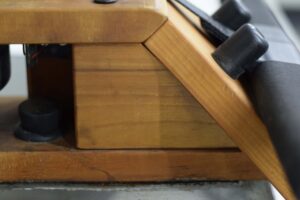

The Key Brackets (the trapezoidal elements connecting the footboard, the top deck and the bottom deck) were made of wood.
US Model B
The Key Brackets (the trapezoidal elements connecting the footboard, the top deck and the bottom deck) were made of wood.
UK

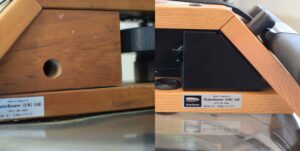

The Key Brackets (the trapezoidal elements connecting the footboard, the top deck and the bottom deck) were predominately made of wood however with some later versions there was a rollout change to urethane (rubber-like) key brackets.

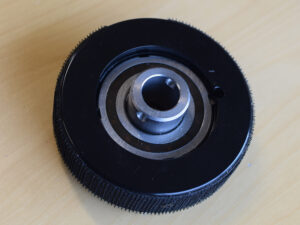

Clutch
US Model A
The Clutch is 3″in diameter and made of steel.
US Model B
The Clutch is 3″in diameter and made of steel.
UK
The Clutch is 4″in diameter and made of steel.
