Series 3

Series 3

Series 3

U.S. Series including the Nordictrack

U.K. Series 3A

U.K. Series 3B

Wood Variations

Series 3

Series 3A

Series 3B

Footboard

Series 3

The Footboard was two piece, the heel rest was fixed and the foot strap (1″ width)  slid between the two footboard halves.

Series 3A

The Footboard is one piece, the heel rest is adjustable through a series of holes and the foot strap (1″ width) is adjustable by sliding in a groove.

Series 3B

The Footboard is one piece, the heel rest and foot strap (1″ width) is adjustable through a series of bolt holes.

Handle

Series 3

The 15″ handle had a new teardrop shape.

Series 3A

The 15″ handle had a new teardrop shape.

Series 3B

The 15″ handle had a new teardrop shape.

Tank

Series 3

The tank is vaccum formed with a 1″ corner radius a fabricated stainless steel paddle.

Series 3A

The tank is vaccum formed with a 1″ corner radius a fabricated stainless steel paddle.

Series 3B

The tank is injection molded and has a pinned shaft, with a 2″ corner radius and a fabricated stainless steel paddle.

Dolly Wheels

Series 3

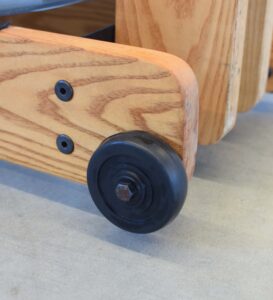

The dollywheels are 3″ in diameter.

Series 3A

The dollywheels are 3″ in diameter.

Series 3B

The dollywheels are 3″ in diameter.

Rails

Series 3

The rails are 1.25″ x 4.5″ wood with a double bungee.

Series 3A

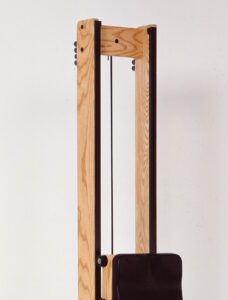

The rails are 1.05″ x 4.5″ wood with a single bungee.

Series 3B

The rails are 1.05″ x 4.5″ wood with a single bungee.

Monitor

Series 3

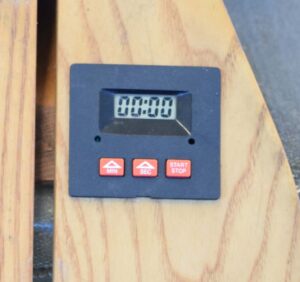

The Series 3 had a Kingi Timer built into the footboard

Series 3A

The S3 monitor has a 4″ square housing, starburst (alphanumeric) display, tacho motor and belt sensor.

Series 3B

The S3 monitor V2 (w/ RS232 interface) has a 4″ square housing, starburst (alphanumeric) display, tacho motor and belt sensor.

Key Brackets

Series 3

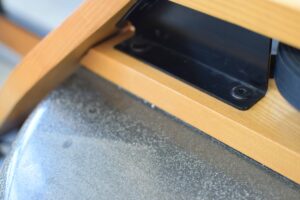

The Key Brackets (the trapezoidal elements connecting the footboard, the top deck and the bottom deck) were metal and opened out.

Series 3A

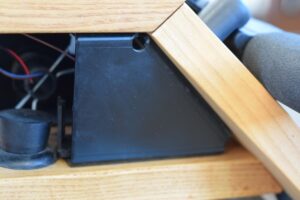

The Key Brackets (the trapezoidal elements connecting the footboard, the top deck and the bottom deck) were metal and opened in.

Series 3B

The Key Brackets (the trapezoidal elements connecting the footboard, the top deck and the bottom deck) were metal and opened in.

Clutch

Series 3

The Clutch is 4″in diameter and made of steel.

Series 3A

The Clutch is 4″in diameter and made of steel.

Series 3B

The Clutch is 4″in diameter and made of steel.
